Visual Firewall Thinger

Difficulty:
Direct link: Visual Firewall Thinger
Area: Hotel
In-game avatar: Chris Elgee

Objective

Request

Find Elgee in the big hotel for a firewall frolic and some techy fun.

Chris Elgee

Oh hi! Am I on the road again? I should buy souvenirs for the family. Loud shirts? Love them. Because - hey, if you aren't having fun, what are you even doing?? And yes, finger guns are 100% appropriate for military portraits. ... We should get dessert soon! Welcome to my little corner of network security! finger guns I've whipped up something sweeter than my favorite whoopie pie - an interactive firewall simulator that'll teach you more in ten minutes than most textbooks do in ten chapters. Don't worry about breaking anything; that's half the fun of learning! Ready to dig in?

High-Level Steps

1. Understand – Analyze the network layout and security zones.
2. Configure – Define firewall rules to allow only required traffic.
3. Validate – Confirm rule behavior and complete the objective.

flowchart TD

  subgraph Row1["Understand"]
    direction LR
    A[Identify zones]
    B[Review firewall goals]
    A --> B
  end

  subgraph Row2["Configure"]
    direction LR
    C[Internet to DMZ rules]
    D[DMZ to Internal rules]
    E[Internal to Cloud rules]
    C --> D --> E
  end

  subgraph Row3["Validate"]
    direction LR
    F[Test allowed traffic]
    G[Confirm blocked traffic]
    H[Objective completed]
    F --> G --> H
  end

  Row1 --> Row2
  Row2 --> Row3

Solution

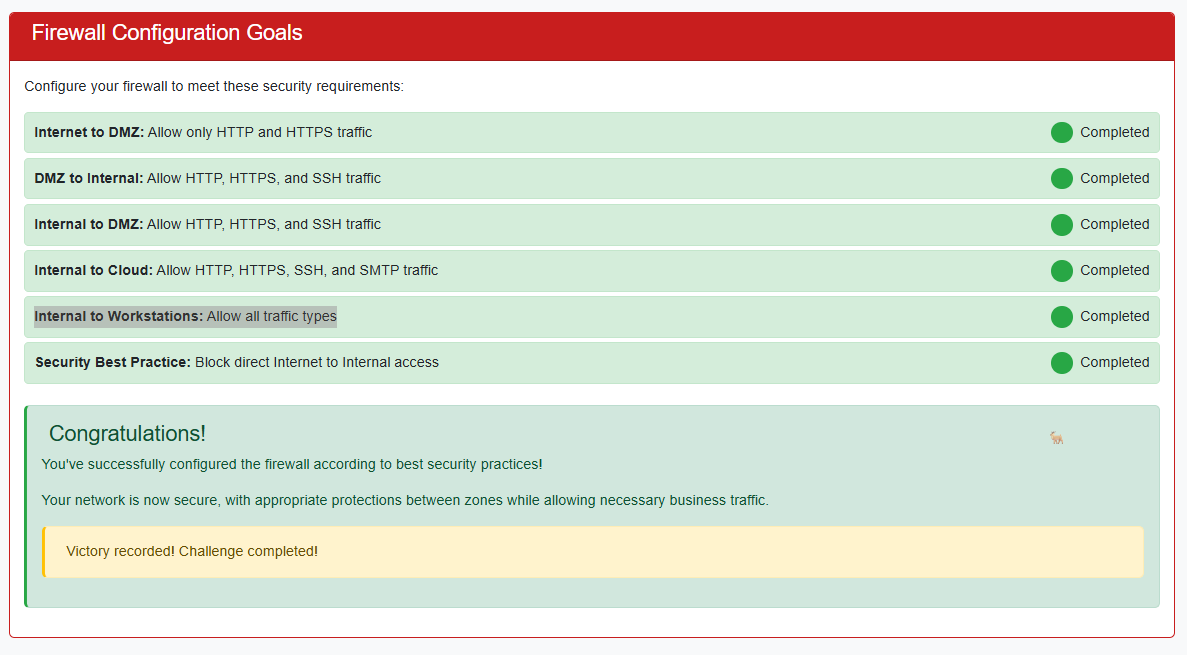

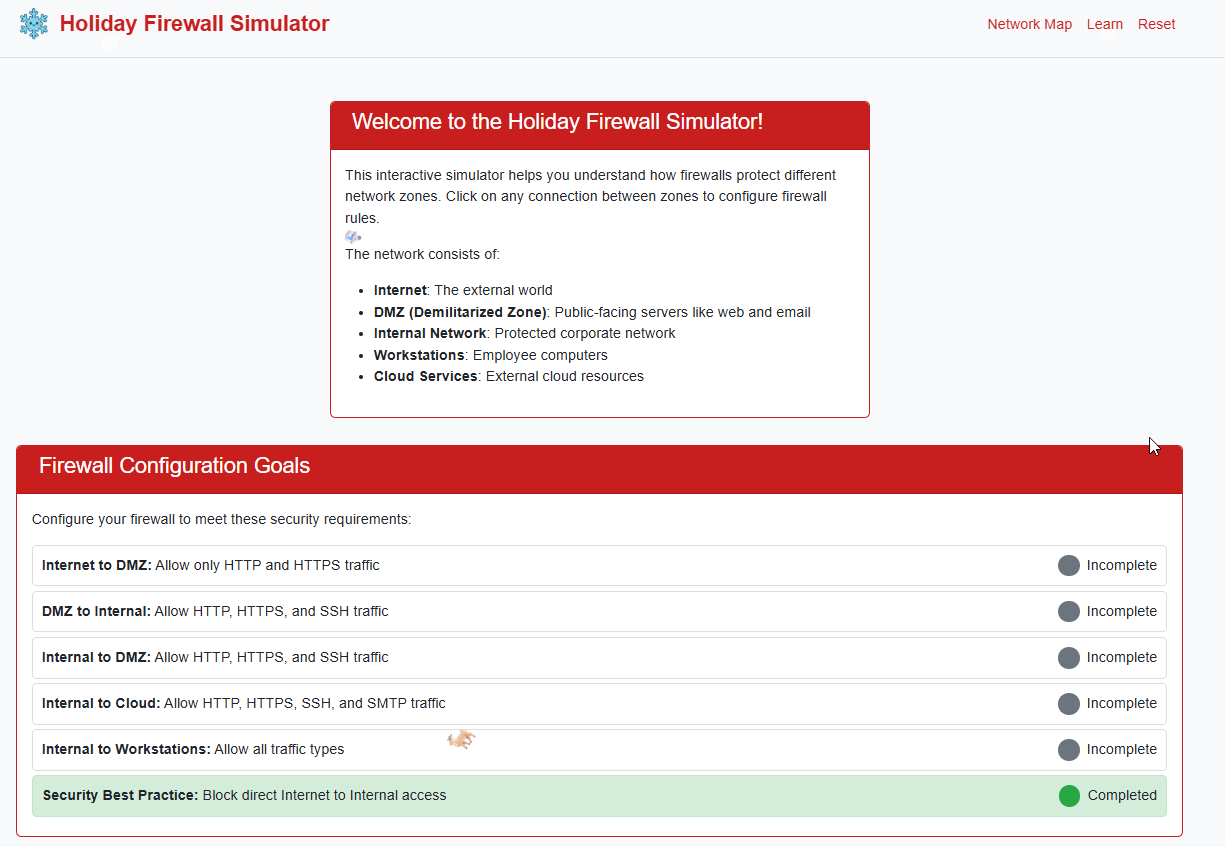

Firewall Configuration Goals

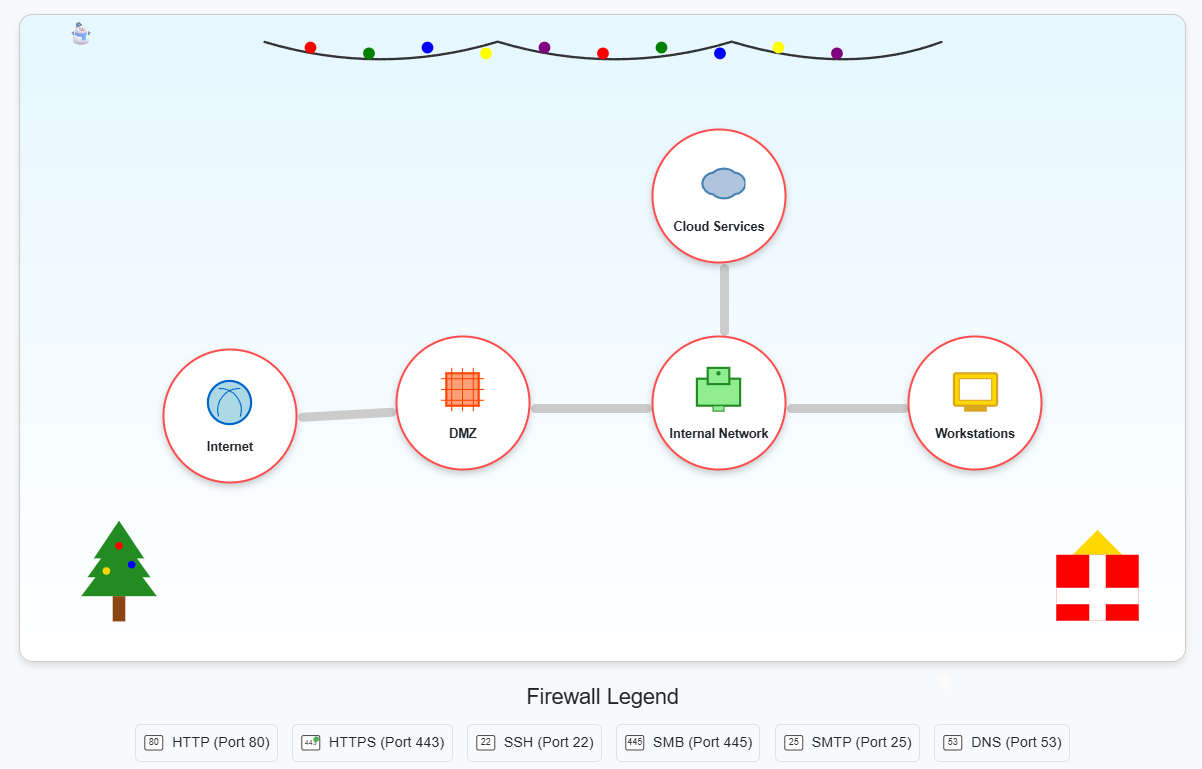

Network map

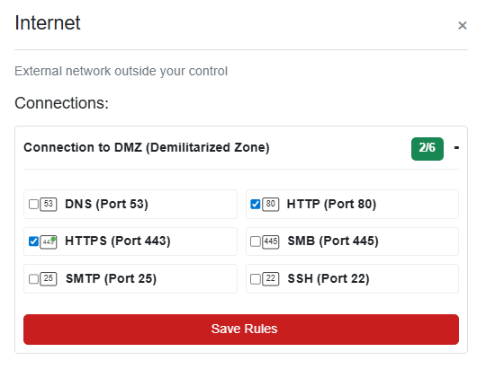

Goal 1 : Internet to DMZ: Allow only HTTP and HTTPS traffic

Goal 2 : DMZ to Internal: Allow HTTP, HTTPS, and SSH traffic

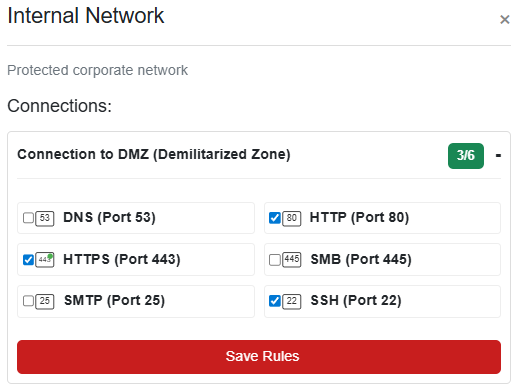

Goal 3 : Internal to DMZ: Allow HTTP, HTTPS, and SSH traffic

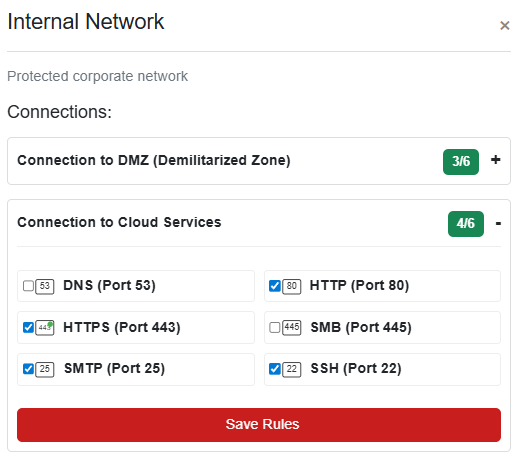

Goal 4 : Internal to Cloud: Allow HTTP, HTTPS, SSH, and SMTP traffic

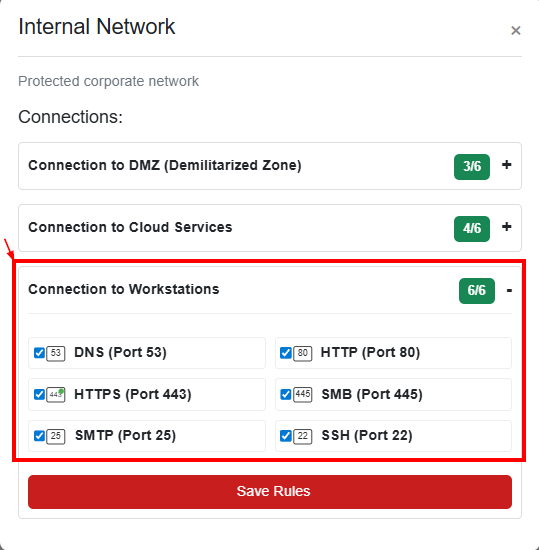

Goal 5 : Internal to Workstations: Allow all traffic types

Completing the firewall configuration rules completes this objective.

Answer

Completed in the game

Response

Chris Elgee

finger guns You did it! That deserves the biggest whoopie pie celebration ever - way to have fun while saving the day!

Learnings

Just like "Visual Networking Thinger" challenge, this is another interactive and awesome UI for firewalls. Reminds me fundamental rules for traffic flows between Internet, DMZ, internal, and cloud zones - noting what should and should not be allowed between two zones.
