The Open Door⚓︎

The Open Door

Difficulty:
Direct link: The Open Door
Area: Hotel parking lot
In-game avatar: Goose Lucas

Objective⚓︎

Request

Help Goose Lucas in the hotel parking lot find the dangerously misconfigured Network Security Group rule that's allowing unrestricted internet access to sensitive ports like RDP or SSH.

Goose Lucas

Copy the first part of the conversation with Elf Name here
You can use <br/> to ensure each sentence starts on a new line.

High-Level Steps⚓︎

Enumerate – Identify Network Security Groups and their associated rules.
Inspect – Review NSG rules for overly permissive internet access.
Confirm – Validate the risky rule exposing sensitive ports.

flowchart TD

  subgraph Row1["Enumerate"]
    direction LR
    A[List resource groups]
    B[List Network Security Groups]
    A --> B
  end

  subgraph Row2["Inspect"]
    direction LR
    C[Review NSG rules]
    D[Identify internet-exposed ports]
    C --> D
  end

  subgraph Row3["Confirm"]
    direction LR
    E[Inspect suspect rule details]
    F[Confirm risky RDP access]
    G[Objective completed]
    E --> F --> G
  end

  Row1 --> Row2
  Row2 --> Row3

Solution⚓︎

The Console
The Open Door

Goal 1⚓︎

Welcome back! Let's start by exploring output formats.
First, let's see resource groups in JSON format (the default):

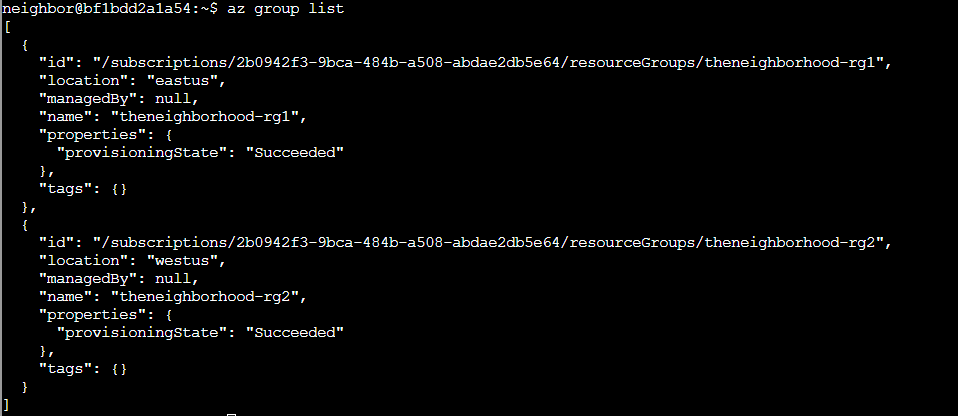

$ az group list
JSON format shows detailed structured data.

az group list

Great! Now let's see the same data in table format for better readability 👀 $ az group list -o table Notice how -o table changes the output format completely! Both commands show the same data, just formatted differently.

az group list -o table

Goal 3⚓︎

Lets take a look at Network Security Groups (NSGs). To do this try: az network nsg list -o table This lists all NSGs across resource groups. For more information: https://learn.microsoft.com/en-us/cli/azure/network/nsg?view=azure-cli-latest

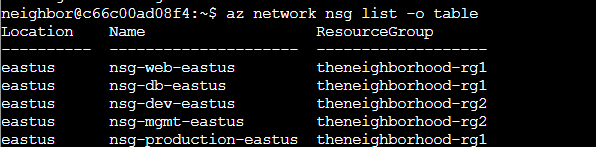

az network nsg list -o table

Goal 4⚓︎

Inspect the Network Security Group (web) 🕵️ Here is the NSG and its resource group:--name nsg-web-eastus --resource-group theneighborhood-rg1

Hint: We want to show the NSG details. Use | less to page through the output.
Documentation: https://learn.microsoft.com/en-us/cli/azure/network/nsg?view=azure-cli-latest#az-network-nsg-show

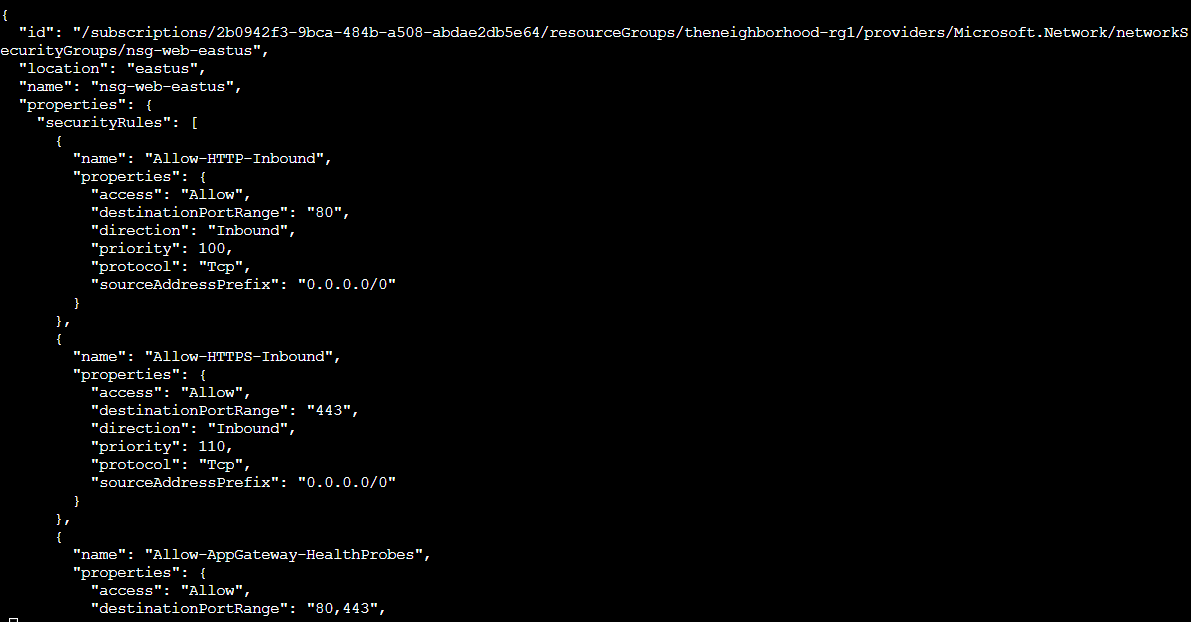

az network nsg show --name nsg-web-eastus --resource-group theneighborhood-rg1 | less

Goal 5⚓︎

Inspect the Network Security Group (mgmt) 🕵️
Here is the NSG and its resource group:--nsg-name nsg-mgmt-eastus --resource-group theneighborhood-rg2

Hint: We want to list the NSG rules
Documentation: https://learn.microsoft.com/en-us/cli/azure/network/nsg/rule?view=azure-cli-latest#az-network-nsg-rule-list

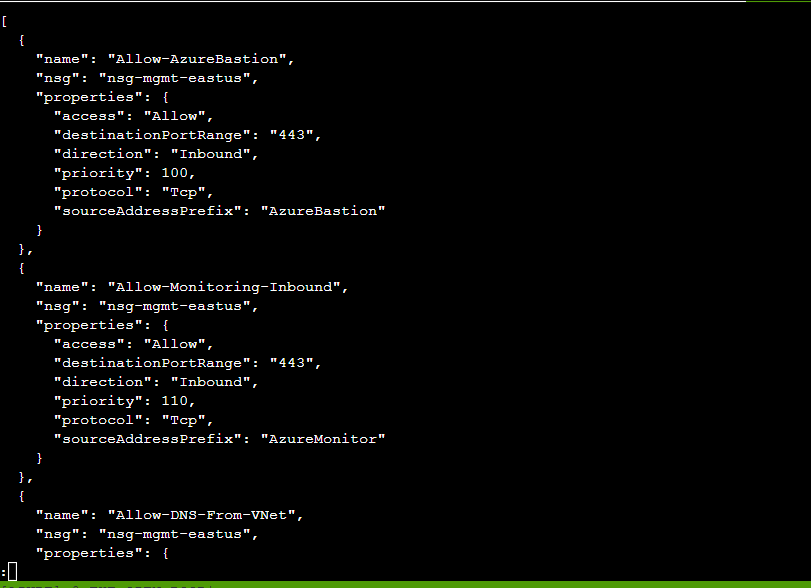

az network nsg rule list --nsg-name nsg-mgmt-eastus --resource-group theneighborhood-rg2 | less

Goal 6⚓︎

Take a look at the rest of the NSG rules and examine their properties. After enumerating the NSG rules, enter the command string to view the suspect rule and inspect its properties. Hint: Review fields such as direction, access, protocol, source, destination and port settings.

Documentation: https://learn.microsoft.com/en-us/cli/azure/network/nsg/rule?view=azure-cli-latest#az-network-nsg-rule-show

Location    Name                   ResourceGroup
----------  ---------------------  -------------------
eastus      nsg-web-eastus         theneighborhood-rg1
eastus      nsg-db-eastus          theneighborhood-rg1
eastus      nsg-dev-eastus         theneighborhood-rg2
eastus      nsg-mgmt-eastus        theneighborhood-rg2
eastus      nsg-production-eastus  theneighborhood-rg1

-- NO suspicious rules in the below NSG
az network nsg rule list --nsg-name nsg-web-eastus --resource-group theneighborhood-rg1 | less

-- NO suspicious rules in the below NSG
az network nsg rule list --nsg-name nsg-db-eastus --resource-group theneighborhood-rg1 | less

 -- NO suspicious rules in the below NSG
az network nsg rule list --nsg-name nsg-dev-eastus --resource-group theneighborhood-rg2 | less

-- no suspicious rules found in the below NSG
az network nsg rule show -g theneighborhood-rg2 --nsg-name nsg-mgmt-eastus -n Allow-Backup-Outbound

This NSG named "nsg-production-eastus" has suspicious rule : Allowing RDP access from the internet

az network nsg rule list --nsg-name nsg-production-eastus --resource-group theneighborhood-rg1 | less

Goal 7⚓︎

Take a look at the rest of the NSG rules and examine their properties.
After enumerating the NSG rules, enter the command string to view the suspect rule and inspect its properties.
Hint: Review fields such as direction, access, protocol, source, destination and port settings.

Documentation: https://learn.microsoft.com/en-us/cli/azure/network/nsg/rule?view=azure-cli-latest#az-network-nsg-rule-show

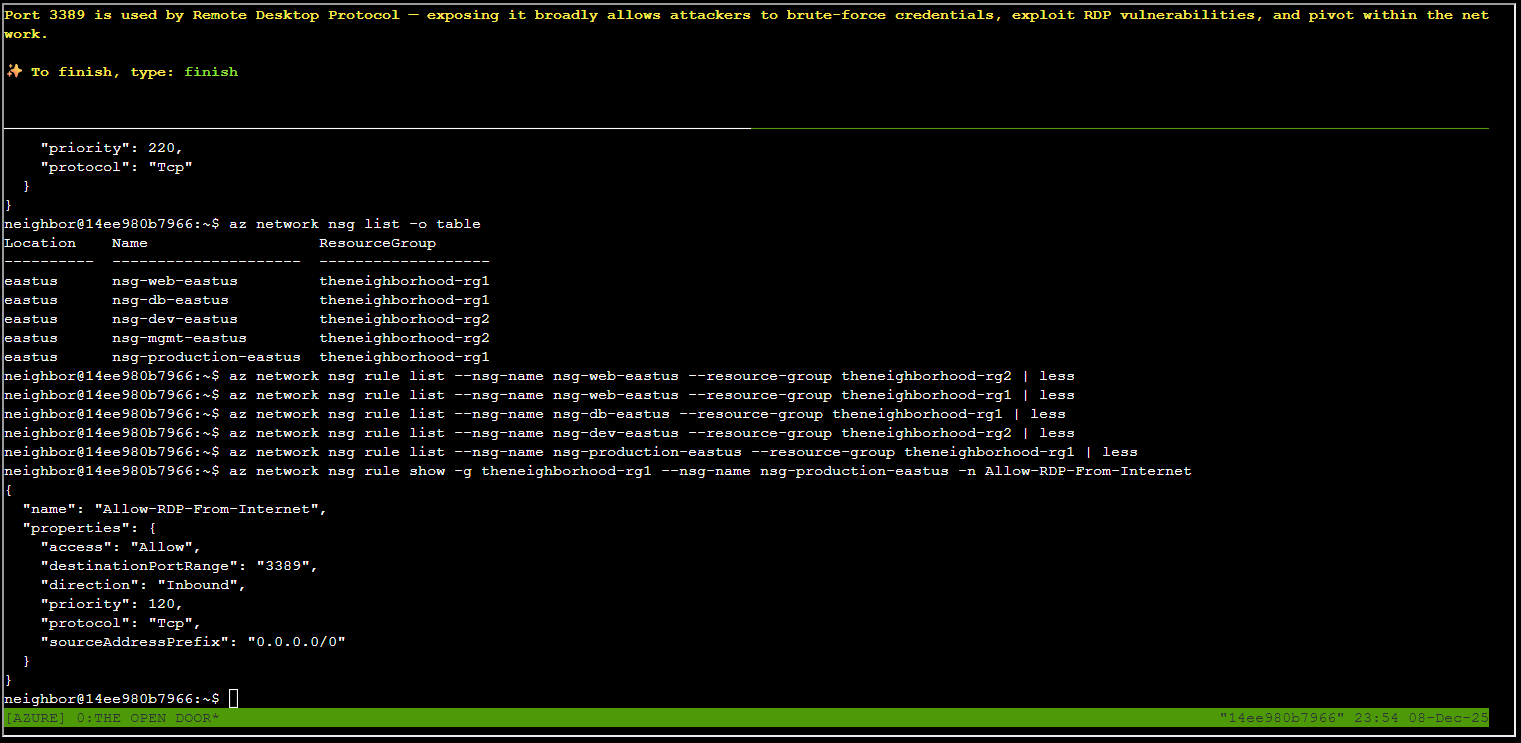

az network nsg rule show -g theneighborhood-rg1 --nsg-name nsg-production-eastus -n Allow-RDP-From-Internet

Goal 8⚓︎

Port 3389 is used by Remote Desktop Protocol — exposing it broadly allows attackers to brute-force credentials, exploit RDP vulnerabilities, and pivot within the network. ✨ To finish, type: finish

finish

The challenge is now completed.
The Open Door

Answer

Completed in the game.

Response⚓︎
